Characteristics
Model SRPI goo wide belt sander is suitable for calibrating and sanding door board, floor board, furniture board etc.
Adopting foundry frame, the sanding units can not be distorted easily and have good effect of vibration & absorption.
Fault display makes maintenance and repair easy. When fault happens, the machine will be powered off, brake, the table fall and protect workpieces from being damaged
Imported PLC is used to ~ntrol motom running, sanding belt swing and thickness display, which guarantees the anti-jamming function of the machine.
Technical features
|
|

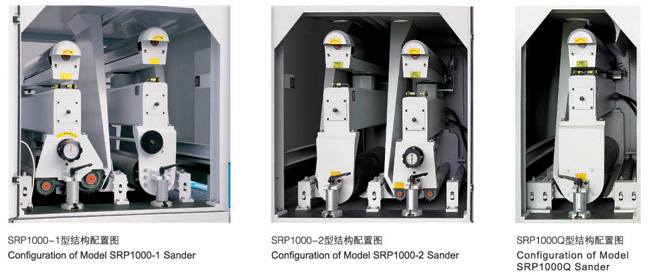

SRP1000-1
|
SRP1000-2
|
SRP1000Q
|
|
Working width
|
40-1000mm
|
40-1000mm
|
40-1000mm
|
|
Working thickness
|
3-100mm
|
3-100mm
|
3-100mm
|
|
Working length
|
≥600mm
|
≥600mm
|
≥500mm
|
|
No.1 abrasive belt speed
|
18m/s
|
20m/s
|
1-10m/s
|
|
No.2 abrasive belt speed
|
14m/s
|
10m/s
|
|
|
Feed speed
|
6-30m/min
|
6-30m/min
|
6-30m/min
|
|
Size of abrasive belt(WxP)
|
1030x2200mm
|
1030x2200mm
|
1030x2200mm
|
|
Total motor power
|
39.94kw
|
31.74kw
|
9.74kw
|
|
Main motor
|
22kw,15kw
|
18.5kw,11kw
|
7.5kw
|
|
Working air pressure
|
0.55Mpa
|
0.55Mpa
|
0.55Mpa
|
|
Consumption of compressed air
|
0.1m3/min
|
0.1m3/min
|
0.5m3/min
|
|
Volume of sucked air
|
9000m3/h
|
9000m3/h
|
6000m3/h
|
|
Speed of sucked air |
25-30m/s
|
25-30m/s
|
25-30m/s
|
|
Overall dimension{LxWxH)
|
2265x1740x2180mm
|
2265x1740x2180mm
|
1800x2310x2000mm
|
|
Net weight
|
3000kg
|
2700kg
|
2000kg
|
