Detailed description
Characteristics

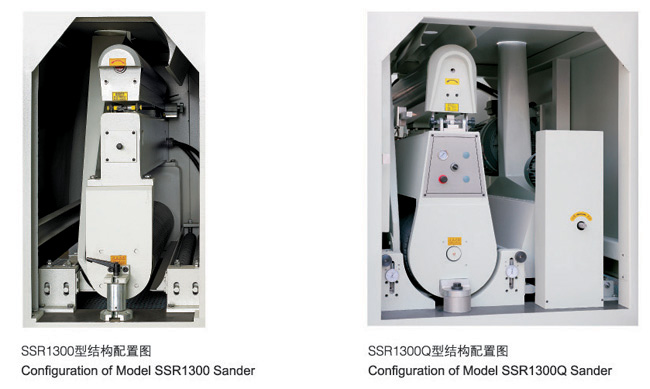

Model SSR1300 wide belt sander is suitable for calibrating ,sangding integrated materialss board,chipboard etc..
Model SSR1300Q sanding belt speed drive is frequency conversion,wide speed range,suitable for sanding kinds of lacquer surface or fancy plecees.
Adopting foundry frame,the sanding units can not be disorted easily and have good effect of vibration & absorption.
Fault display makes maintenance and repair easy.When fault happens,the machine will be powered off ,brake ,the table fall and protect workpieces from being damaged.
Imported PLC is used to control motors running,sanding belt swing and thickness display,whick guarantees the anti-jamming function of the machine.
Technical features
|
|
SSR1300
|
SSR1300Q
|
|
Working width
|
40-1300mm
|
40-1300mm
|
|
Working thickness
|
3-100mm
|
3-100mm
|
|
Working length
|
≥500mm
|
≥320mm
|
|
No1 abrasive belt speed
|
20m/s
|
3-12m/s
|
|
Feed speed
|
6-30m/min
|
6-30m/min
|
|
Size of abrasive belt(WxP)
|
1330x2200mm
|
1330x2620mm
|
|
Total motor power
|
41.74kw
|
20.57kw
|
|
Main motor
|
37kw
|
15kw
|
|
Working air pressure
|
0.55Mpa
|
0.55Mpa
|
|
Consumption of compressed air
|
0.1m3/min
|
0.9m3/min
|
|
Volume of sucked air
|
7500m3/h
|
7000m3/h
|
|
Speed of sucked air |
25-30m/s
|
25-30m/s
|
|
Overall dimension{LxWxH)
|
1800x2690x2010mm
|
2210x2040x2320mm
|
|
Net weight
|
2500kg
|
3200kg
|
